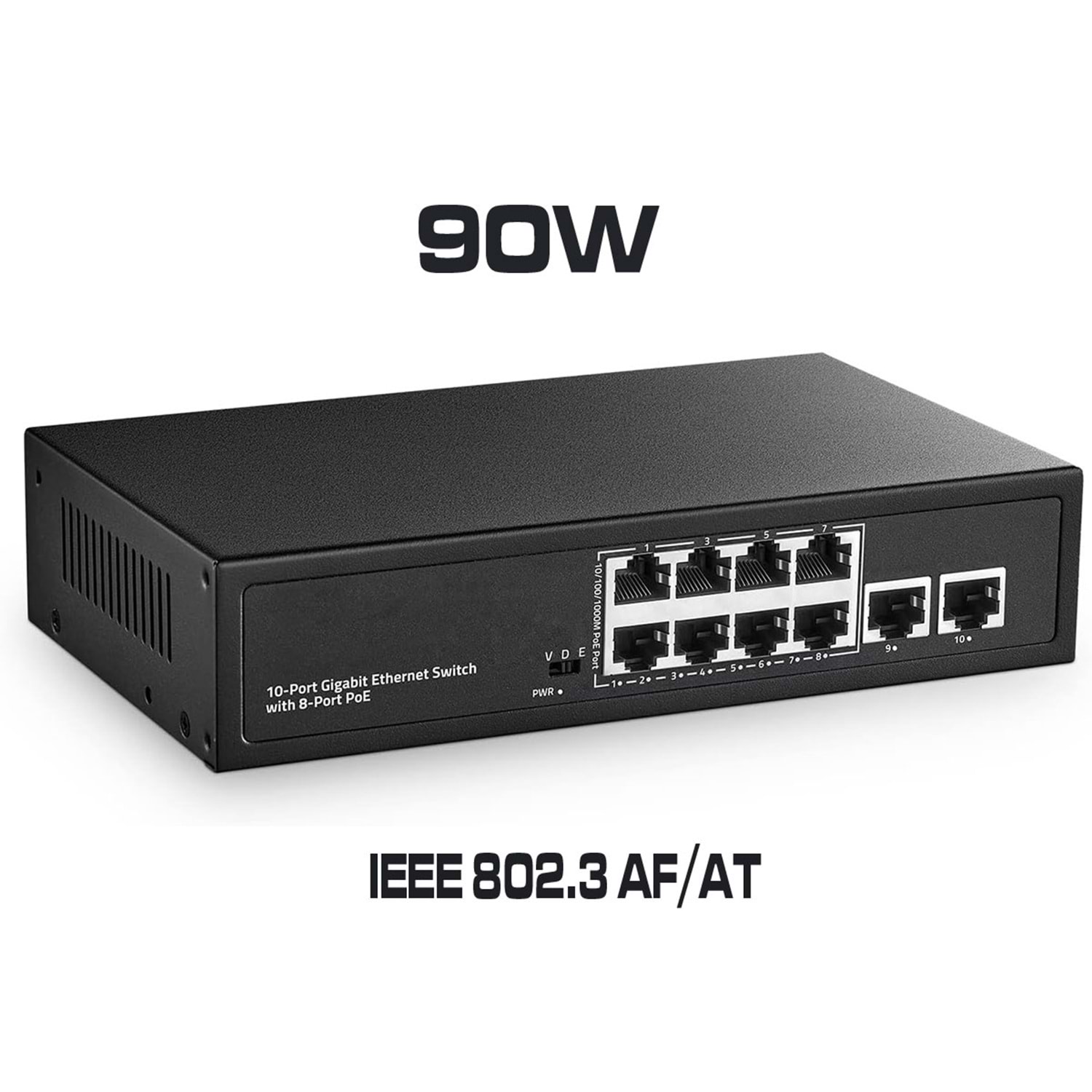

0 OPAX-0890W 8 PORT 10/100M POE SWITCH +2 PORT UPLINK 90W
OPAX-0890W 8 PORT 10/100M POE SWITCH +2 PORT UPLINK 90W
OPAX-0890W 8 PORT 10/100M POE SWITCH +2 PORT UPLINK 90W
Product Description
Main Features

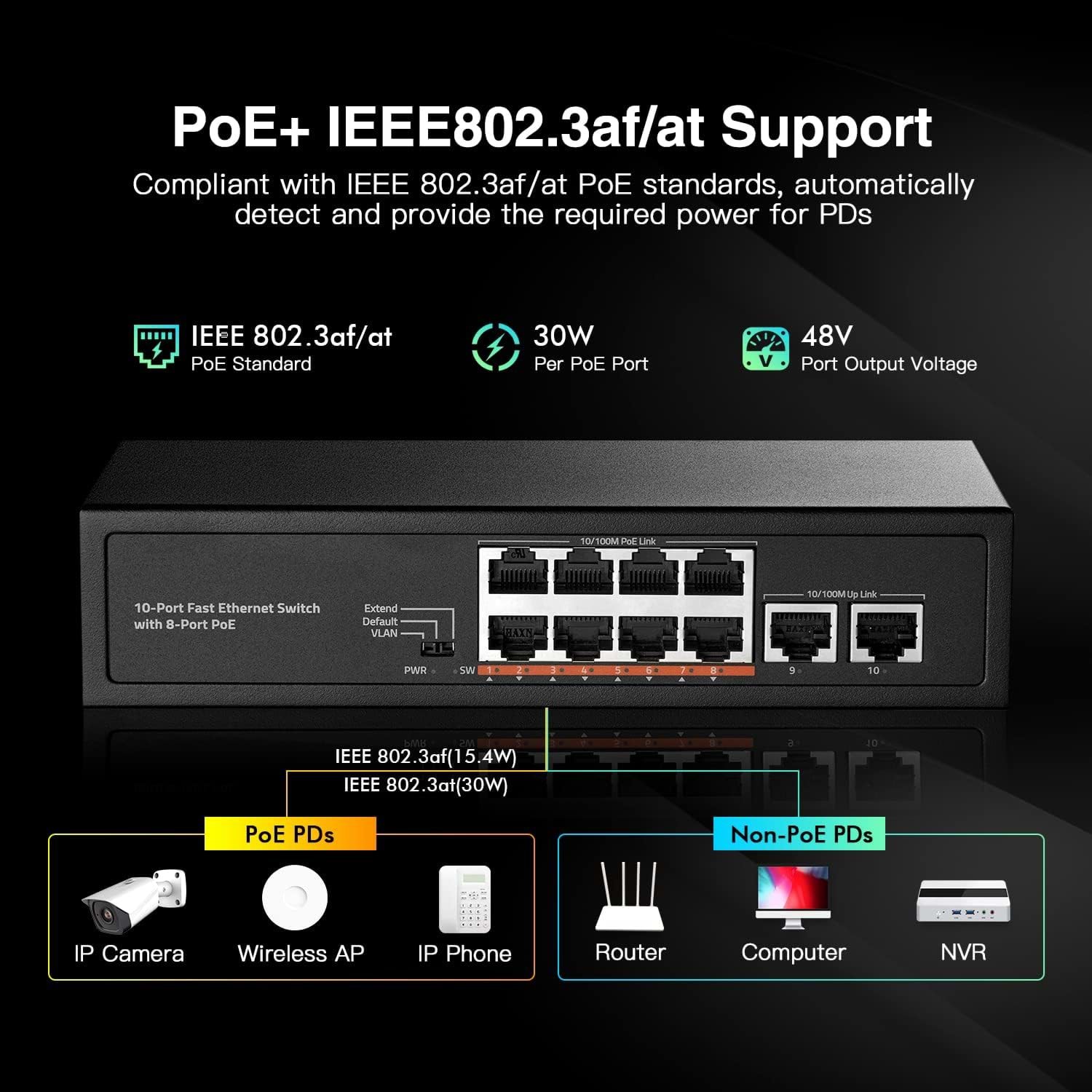

10-port fast ethernet poe switch using high-quality high-speed network IC and the most stable PoE chip, PoE Port support IEEE802.3af/at standard, The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE 802.3af or IEEE802.3at standards. The non-PoE device intelligently detects no power and only transmits data.
PoE is Power over Ethernet, which refers to the transmission of data signals to some IP-based terminals (such as IP phones, wireless access APs, network cameras, etc.), but also provides DC power for this device. Technology, these devices that receive DC power are called powered devices.
- 8*10/100Mbps PoE ports + 2* 10/100Mbps Ethernet Uplink ports.
- Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3ab standards.
- Ethernet port supports 10/100Mbps adaptive and POE functions.
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard.
- Support port auto flip (Auto MDI/MDIX).
- Automatically supplied to adaptive devices.
- Panel indicator monitoring status and help failure analysis.
- Support for VLAN mode, Normal mode and Extend mode.
- Lightning Protection Surge: General Mode 6KV, Differential Mode 4KV, ESD 8KV.
Product Specifications
| Model | OPAX-0890W |
| Ethernet | 8 Port 10/100M PoE + 2 Port 10/100M Ethernet Uplink |
| Switching Capacity | 2Gbps |
| Throughput | 1.488Mpps |
| Packet Buffer | 448K |
| MAC Address | 1K |
| Jumbo Frame | 2048bytes |
| Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3x (Flow control) |
| PoE Protocol | IEEE802.3af (15.4W) IEEE802.3at (30W) |
| Network Medium | 10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) |

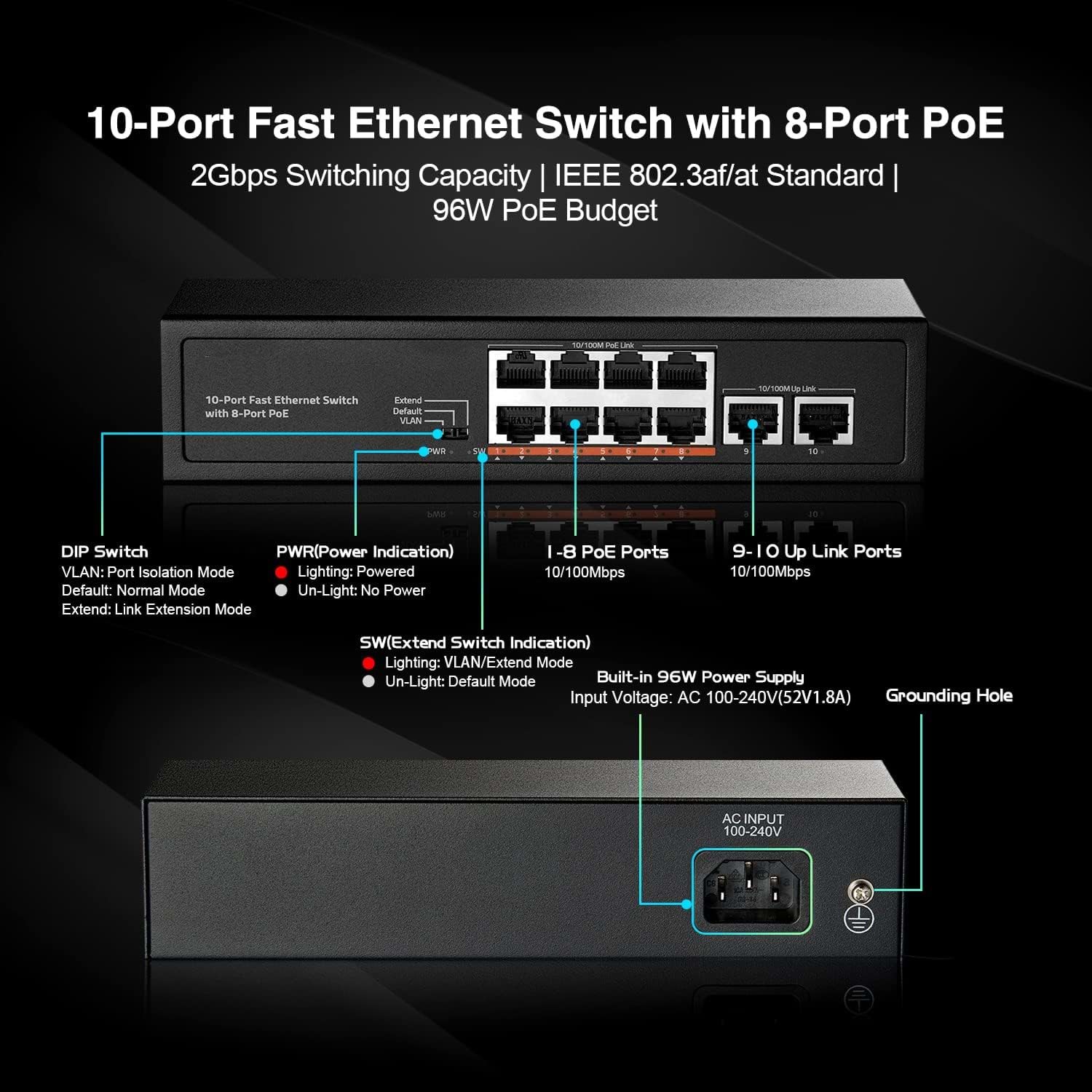

| LED Indicators | PWR(power supply), SW(DIP), 1-10 Green(Link&Data) |

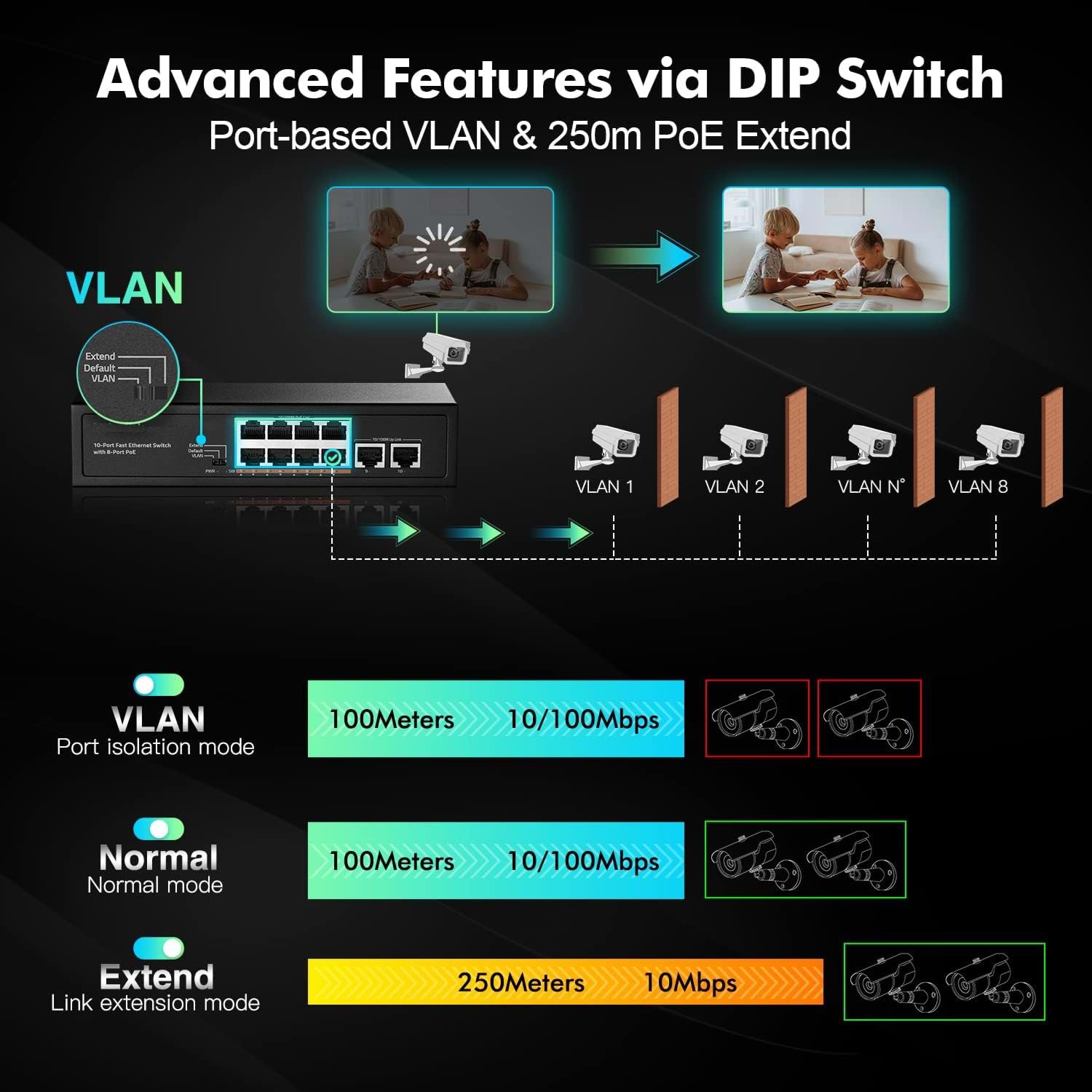

| DIP Switch | VLAN: Port isolation mode. In this mode, the PoE ports (1-8) of the switch cannot communicate with each other, and can only communicate with the UP-link port. Normal: Normal mode, all port can communicate with each other. Extend: Link extension mode, 1-8 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M. VLAN Modu : Port izolasyon modu. Bu modda, anahtarın PoE portları (1-8) birbiriyle haberleşemez ve sadece UP-link portu ile haberleşebilir. Normal Modu: Normal mod, tüm portlar birbiriyle haberleşebilir. Extend Modu :(Bağlantı genişletme modu) : 1-8 portlu PoE güç kaynağı ve veri iletim mesafesi 250 metreye kadar uzatılabilir, iletim hızı 10M olur. |
| Product Dimension (L*W*H) | 200mm*118mm*44mm |
| Product Weight | 0.6kg |
| Working Environment | Working Temperature：-20~50°C Working Humidity ：10%~90%，non-condensing Working Height：Maximum10,000 feet |
| Power Voltage | Input Voltage ：AC 100-240 V Power supply：52V1.8A 96W |
