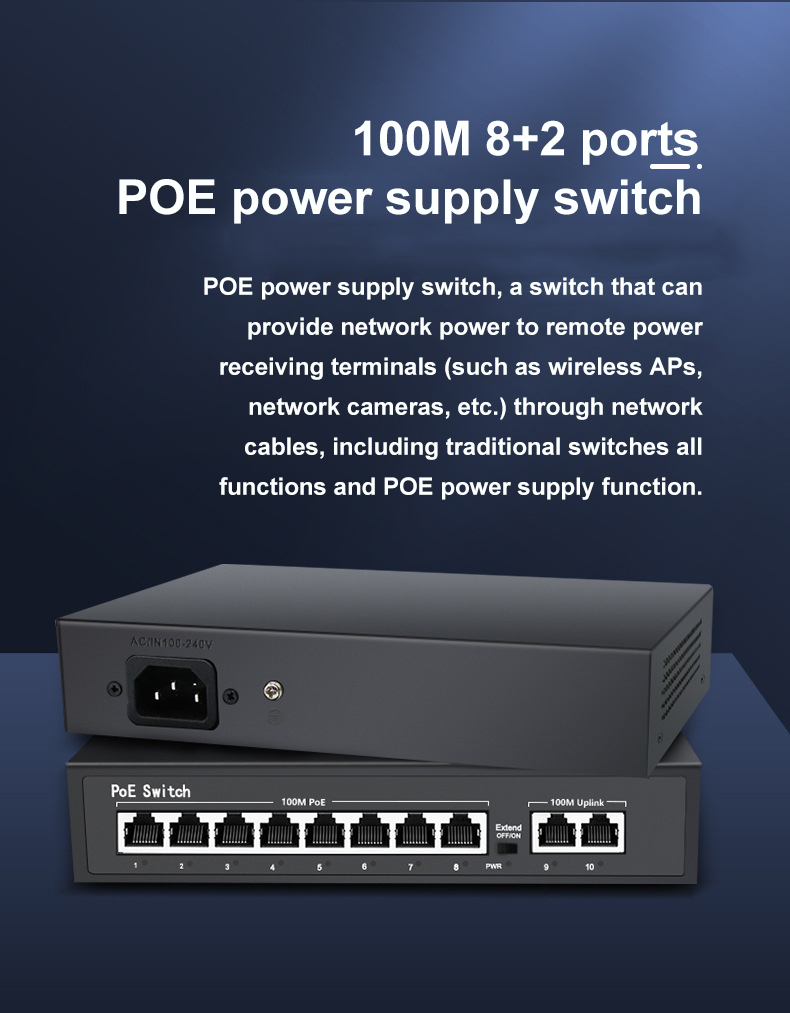

0 OPAX-08120W 8 PORT 10/100M POE SWITCH +2 PORT UPLINK 120W
OPAX-08120W 8 PORT 10/100M POE SWITCH +2 PORT UPLINK 120W
OPAX-08120W 8 PORT 10/100M POE SWITCH +2 PORT UPLINK 120W
· 8*10/100M PoE ports + 2*10/100M uplink RJ45 ports
· IEEE 802.3af/at standard, total power 120W, maximum 30W PoE power of single port
· One-click smart dial mode, support port isolation, 250 meters extend
· PoE watchdog, PoE ports surpport automatically restart, reduce manual maintenance
· 4KV surge protection, 8KV ESD, suitable for -10~50℃ wide temperature environment
-----------------------------------------
| Specification | |
| I/O Interface | |
| Power | AC input (100-240 V) |
| Ethernet | 8 Port 10/100M PoE |
| 2 Port 10/100M Ethernet Uplink | |
| Performance | |
| Switching Capacity | 2Gbps |
| Throughput | 1.488Mpps |
| Packet Buffer | 448K |
| MAC Address | 2K |
| Jumbo Frame | 2Kbytes |
| Transfer Mode | Store and forward |
| MTBF | 100000 hour |
| Standard | |
| Network Protocol | IEEE802.3 (10Base-T) |
| IEEE802.3u (100Base-TX) | |
| IEEE802.3x (Flow control) | |
| PoE Protocol | IEEE802.3af (15.4W) |
| IEEE802.3at (30W) | |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A |
| EMS: EN61000-4-2 (ESD) | |
| EN61000-4-4 (EFT) | |
| EN61000-4-5 (Surge) | |
| Network Medium | 10Base-T: Cat3, 4, 5 or above UTP(≤100m) |
| 100Base-TX: Cat5 or above UTP(≤100m) | |
| Protection | |
| Security Certificae | CE、FCC、RoHS |
| Environment | |
| Working Environment | Working Temperature: -10~50°C |
| Storage Temperature: -40~85°C | |
| Working Humidity: 10%~90%，non-condensing | |
| Mechanical | |
| Structure Size | Product Size: 200*118*44mm |
| Package Size: 245*190*60mm | |
| Product Net-Weight: 0.6kg | |
| Product Gross-Weight: 0.9kg | |
| Packing Info | MEAS: 505*320*400mm |
| Packing Qty: 20 unit | |
| Packing weight: 19 KG | |
| Power Voltage | Input Voltage: AC 100-240 V |
| Output Voltage: 52V2.3A | |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pcs, Certification 1 pc |
| Indication | |
| DIP Switch | |
| Normal Mod: Normal modda, tüm bağlantı noktaları birbiriyle iletişim kurabilir, iletim mesafesi 100 metredir, iletim hızı 10M/100M olarak kullanılabilir; Port AI modu kapalı | |
| Extend Modu (Bağlantı genişletme modu): Bu extend(Bağlantı genişletme) modunda, 1-8 bağlantı PoE portları güç kaynağı ve veri aktarım mesafesi 250 metreye kadar uzatılabilir, aktarım 10M olur ve bağlantı noktası AI modu açılır | |
| LED Indicators | PWR、SW、1-10 Link |
