Models | OPAX-2546 |

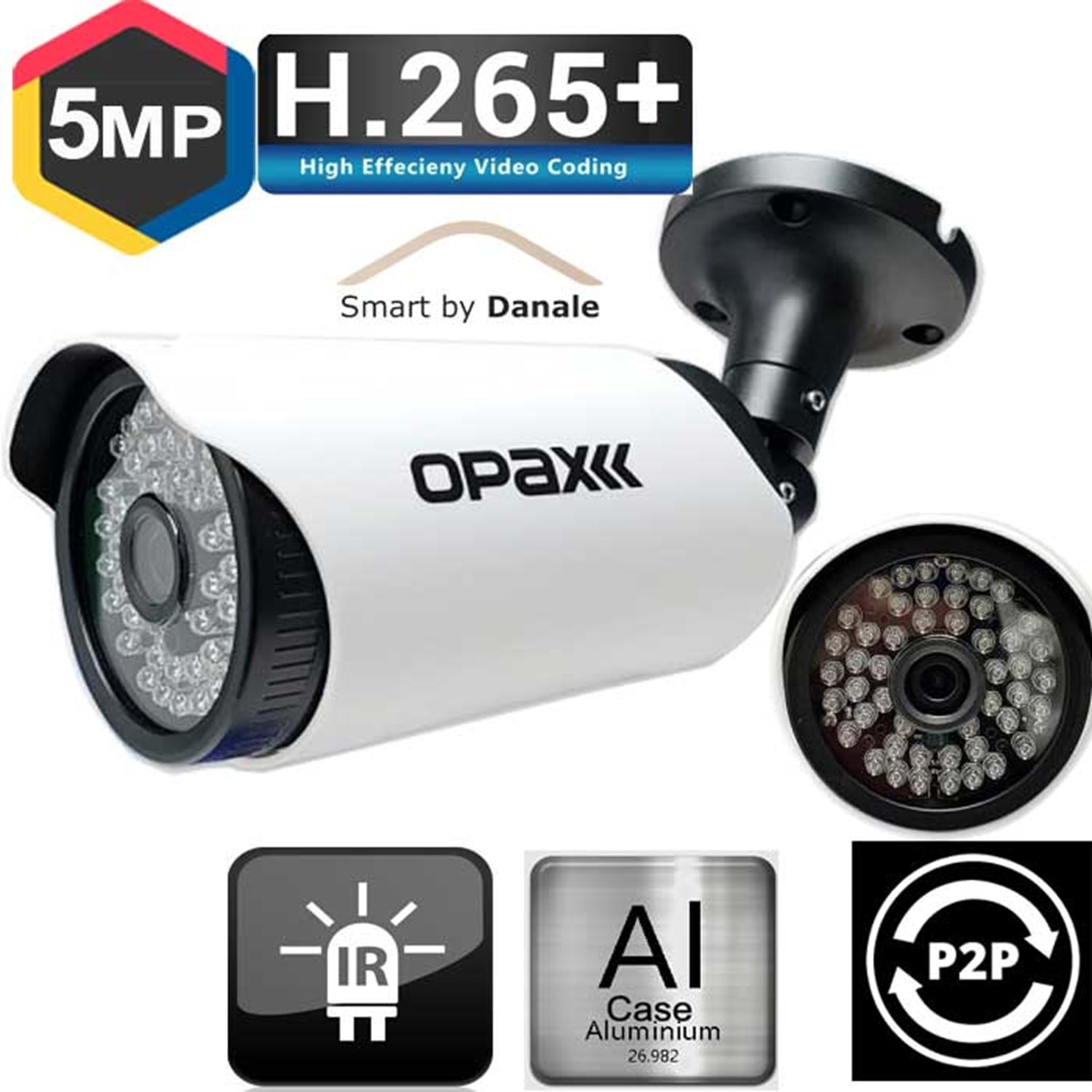

5.0MP HD Network Camera Module |
Image Sensor | 1/2.8 5.0MP CMOS Sony IMX335 |
Min. Illumination | Color:0.01Lux |
S/N Ratio | ≥50dB |

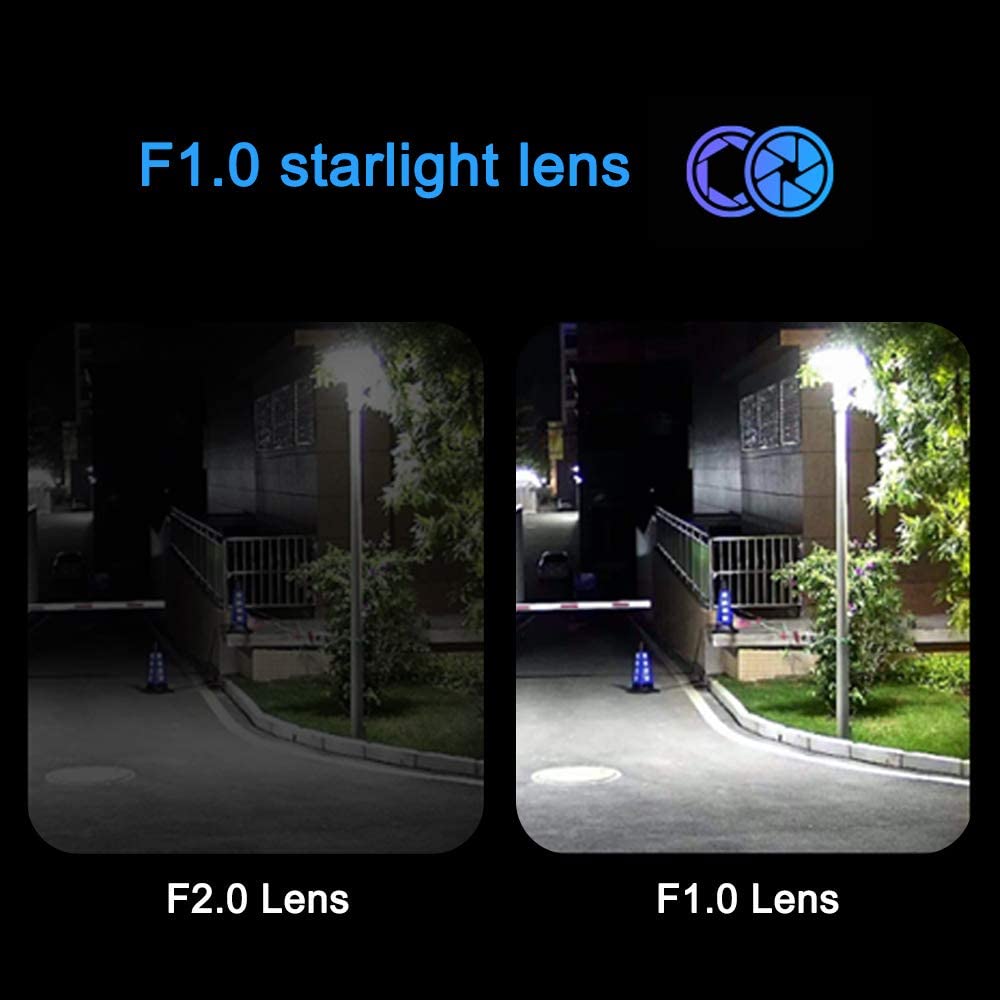

LENS | 3.6 MM F1.0 LENS |
LED | 48 IR LED |

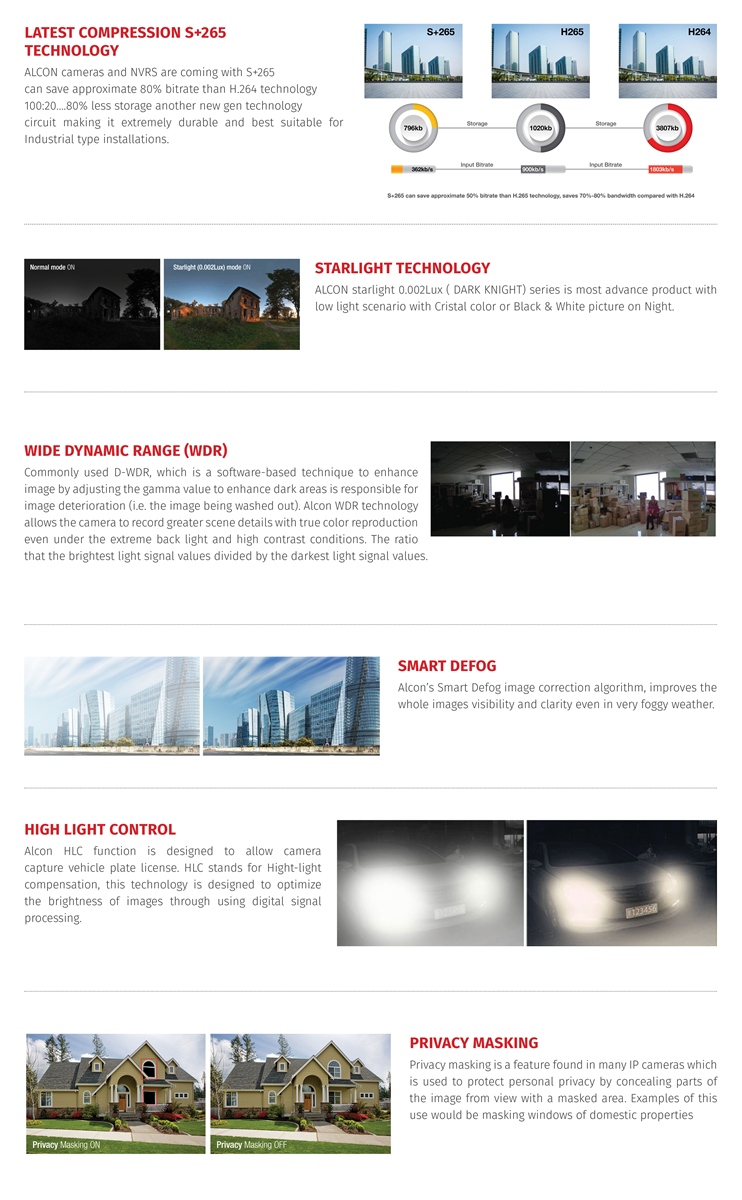

Wide Dynamic Range | Digital WDR, |
Digital noise Reduction | DNR,3DNR |
Exposure Mode | Auto/Manual/shutter mode(shutter range variable) |
White Balance | Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
Day & Night | Day / Night / External control(IR Cut Filter) |
Start Time of Night | Ayarlanabilir saat ile Gecenin başlangıç saatinin belirlenebilmesi |

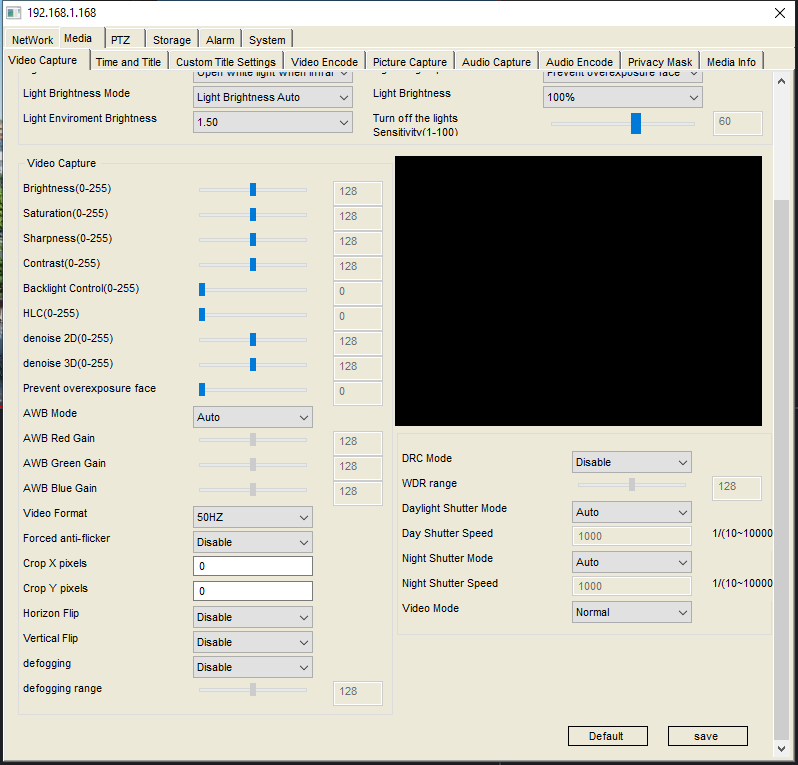

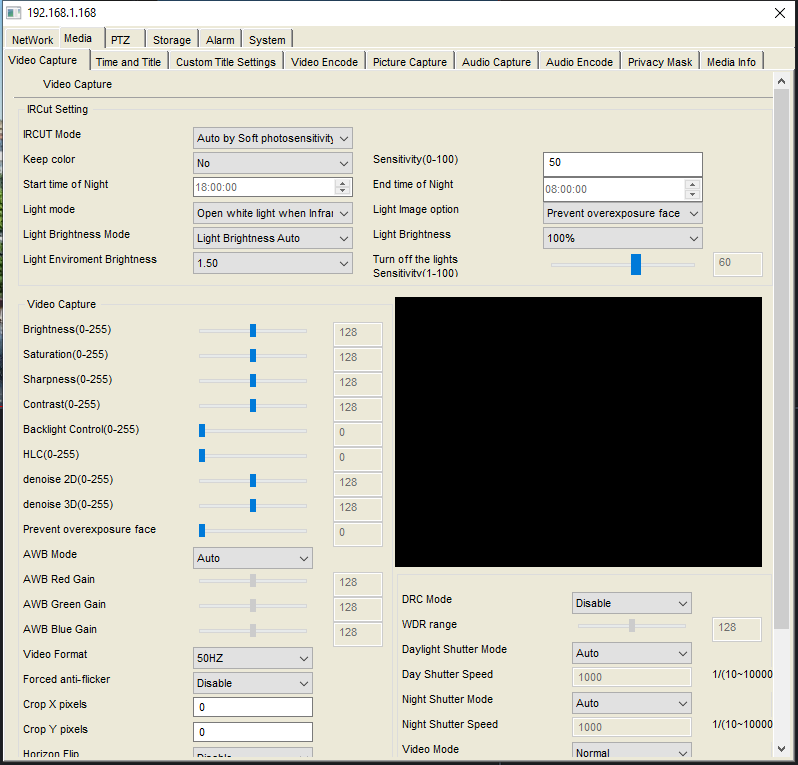

Backlight Control | 0-255 arası seçilebilir |
HLC | 0-255 Arası seçilebilir (plaka okumak için Kullanılır) |
Denoise 2D | 0-255 arası seçilebilir |
Denoise 3D | 0-255 arası seçilebilir |
Prevent overexposure Face | Ayarlanabilir |
Crop X Pxels | Ayarlanabilir |
Crop Y pixels | Ayarlanabilir |
AWB Mode | Auto /Manual |
AWB RED GAIN | 1-128 Seçilebilir |
AWB GREEN GAIN | 1-128 Seçilebilir |
AWB BLUE GAIN | 1-128 Seçilebilir |
Forced Anti-Flicker | Enable/Disable |
DRC Mode | Disable/Enable |
WDR Range | 1-128 Ayarlanabilir |
Daylight Shutter Mode | Auto/Manual |
Day Shutter Speed | 1-10000 |
Night Shutter Mode | Auto/Manual |
Night Shutter Speed | 1-10000 |

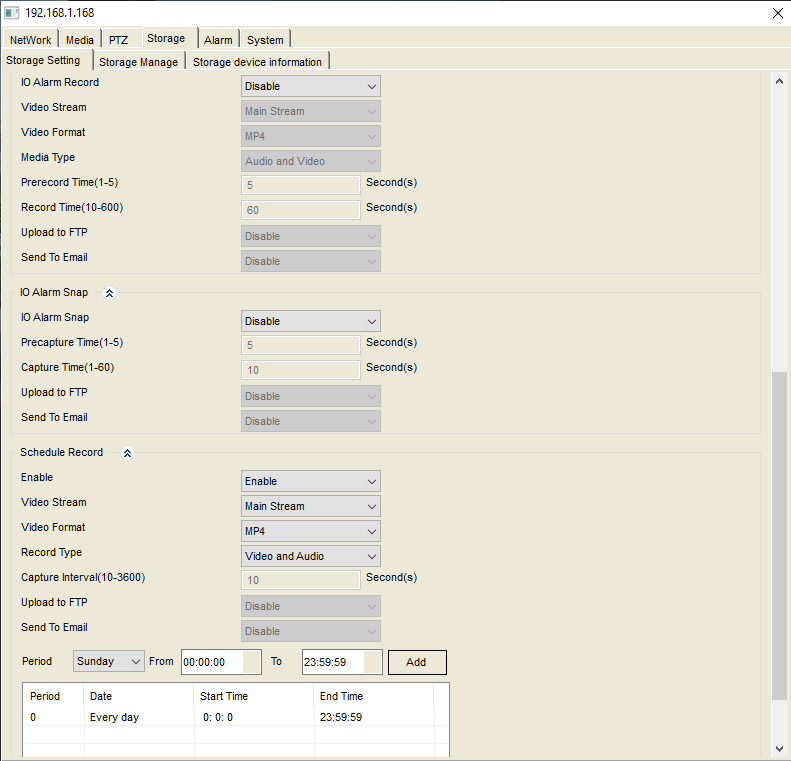

Upload FTP | Destekler |
Send To Email | Destekler |

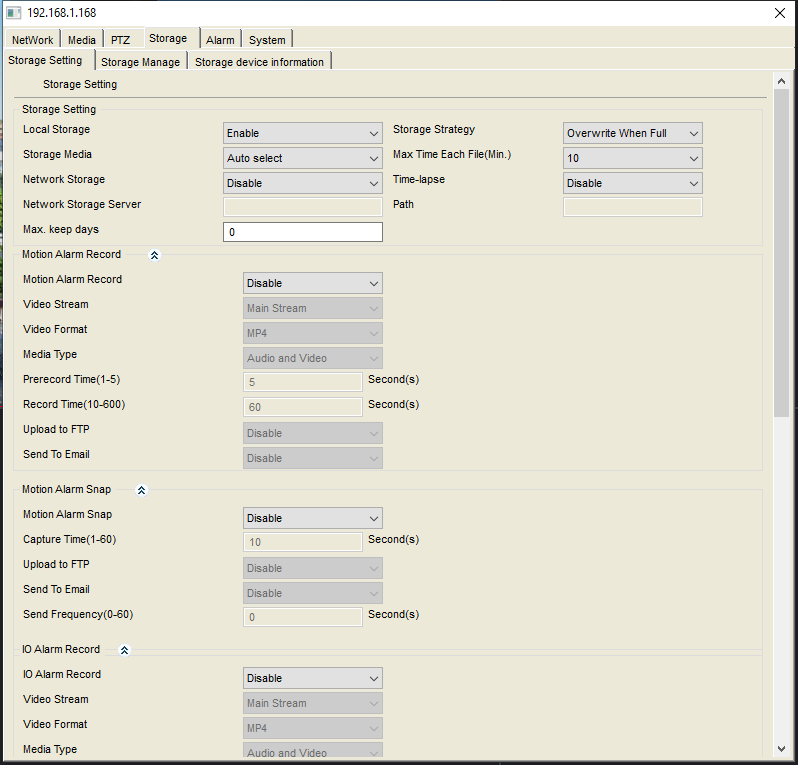

Motion Alarm Snap | Destekler |
Defogging Mode | Enable/Disable |
Defogging Range | 1-128Ayarlanabilir |

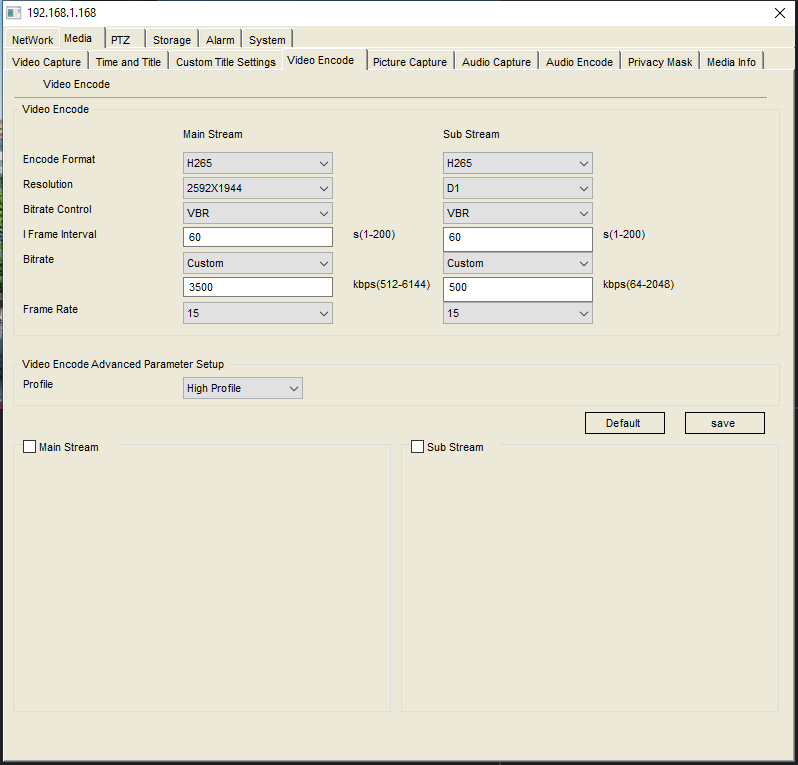

Video Compression | H.265/H.264 Main Profile |
Audio Compression | G711U/G711A/ACC |
Max. Image Resolution | 2592*1944/15fps |

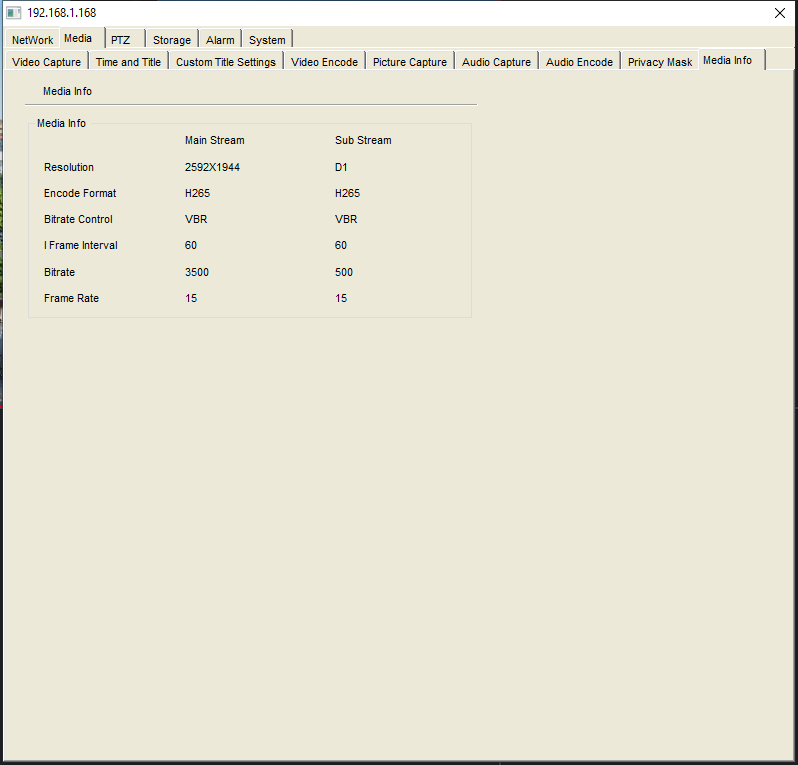

Image Resolution | Main stream | 2592*1944/15fps,2688*1520/2560*1440/25fps,2480*1520/2304*1296/1080P/720P/25fps,1080P/720P@30fps |
Sub-stream | D1/VGA/640*360/480*360/CIF/25fps; |
Streams | Dual streams |
Bitrate | CBR/VBR, bitrate:50Kbps~6Mbps variable |
Simultaneous Live View | Main stream Up to 5,Sub-stream Up to 5 |
OSD | Support camera name、time display .etc,OSD position can be adjusted |
Motion detect | Support |
Privacy Masking | 1 privacy masks programmable |
P2P | Android、IOS |

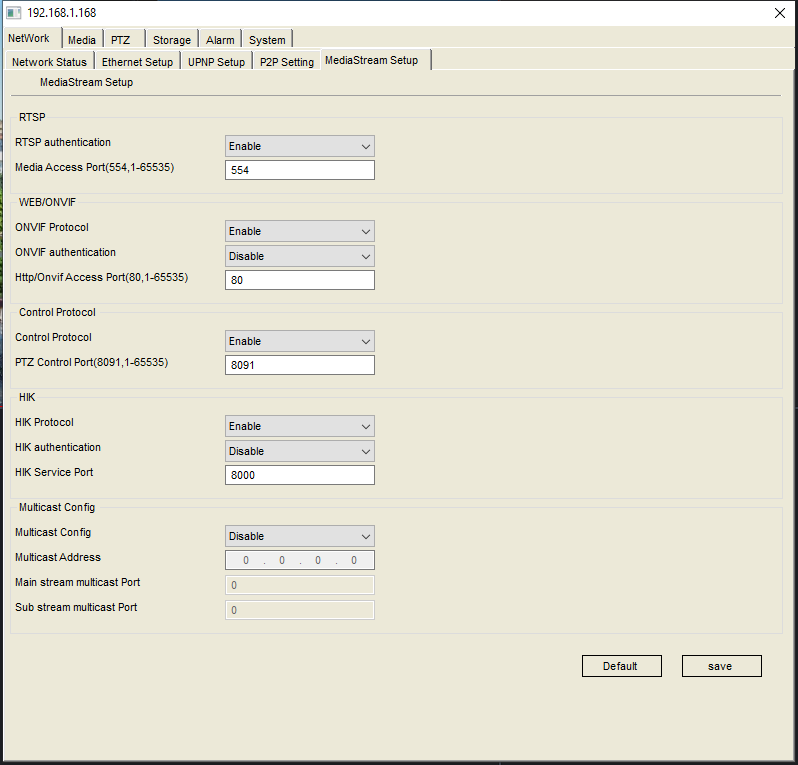

Protocols | HTTP,NTP, DHCP,UDNP,RTSP,P2P,ONVIF |
Onvif | Onvif 2.6 |
Network | 10/100M Base-TX Ethernet, RJ45 Connector |
Store | Unspport |
Protection Level | TVS 6,000V lightning protection |
Power Supply | 12VDC/0.2A |
Dimensions | 38x38mm |
Working Temperature | -30°C ~85°C, Humidity≤90%RH(Unsupport-condensing) |
